JINPAT Ethernet Slip Rings provide dependable transmission of Ethernet signals and electrical power across continuously rotating interfaces. Designed to maintain data integrity during 360-degree rotation, these slip rings support standard Ethernet speeds including 100 Mbps, 1 Gbps, and 10 Gbps, ensuring smooth, interference-resistant communication in dynamic environments.

Product Details

Key Features

  • Supports Multiple Ethernet Protocols: Compatible with 100M, Gigabit, and 10G Ethernet networks for fast, reliable signal transmission.

  • Integrated Signal & Power Transfer: Combines Ethernet data and electrical channels in one compact unit.

  • High-Endurance Construction: Engineered for long-term use in challenging operating environments.

  • Compact & Versatile: Space-efficient designs suitable for tight installation spaces.

  • Fully Customizable: Options for Ethernet channel count, electrical specs (current/voltage), signal types, and connector configurations.


Typical Applications

  • Industrial & Collaborative Robotic Arms

  • Rotating Platforms & Machines

  • HD Video Surveillance Systems

  • Aerospace & Defense Equipment

  • Medical Diagnostic Devices

  • Automated Test Stations


Customization & Engineering Support

We offer fully tailored slip ring solutions, with options for:

  • Signal type and circuit combinations

  • Mechanical design and mounting styles

  • Ingress protection levels (IP ratings)

  • Connector types and cable specifications

3D CAD models, application guidance, and 24/7 technical support are available on request.


Global-Ready Solutions

All JINPAT Ethernet slip rings are precision-built for mission-critical applications, offering high reliability, minimal signal loss, and robust performance across industrial and high-tech sectors.

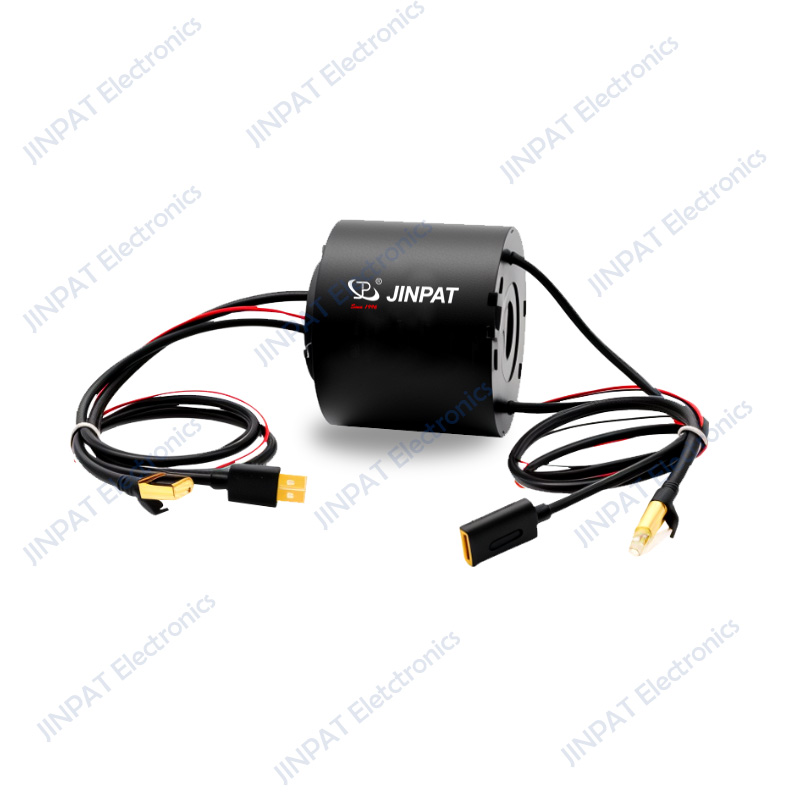

Ethernet Slip Rings(Through-bore Type)

Type Model

  ID(mm)

  0D(mm)

Ethernet(Max. 8 channels)

 Current Circuits  IP

 Ethernet Support

  Ethernet Channels(set)   5A/Signal     10A       15A
 LPT025
 LPT025-0605-01E(2-3)    ∅25.4   ∅86  100M ✔ / 1G ✔ 1 6

 IP50~IP68
LPT025-0610-01E(2-3)
  6
LPT025-0615-01E(2-3)

  6
LPT025-1205-01E(2-3)   12

LPT025-1210-01E(2-3)
12
LPT025-1215-01E(2-3)

12
LPT025-0605-02E(2-3) 100M ✔ / 1G ✔ 2
 6

LPT025-0610-02E(2-3)
6
LPT025-0615-02E(2-3)

6
LPT025-1205-02E(2-3) 12

LPT025-1210-02E(2-3)
12
LPT025-1215-02E(2-3)

12
LPT038
 LPT038-0605-01E(2-3) ∅ 38.1 ∅ 99 100M ✔ / 1G ✔ 1 6

IP50~IP68
LPT038-0610-01E(2-3)
6
LPT038-0615-01E(2-3)

6
LPT038-1205-01E(2-3) 12

LPT038-1210-01E(2-3)
12
LPT038-1215-01E(2-3)

12
LPT038-0605-02E(2-3) 100M ✔ / 1G ✔ 2
 6

LPT038-0610-02E(2-3)
6
LPT038-0615-02E(2-3)

6
LPT038-1205-02E(2-3) 12

LPT038-1210-02E(2-3)
12
LPT038-1215-02E(2-3)

12
LPT050
 LPT050-0605-01E(2-3)
 ∅ 50 ∅ 119 100M ✔ / 1G ✔ 1 6

IP50~IP68
LPT050-0610-01E(2-3)
6
LPT050-0615-01E(2-3)

6
LPT050-1205-01E(2-3) 12

LPT050-1210-01E(2-3)
12
LPT050-1215-01E(2-3)

12
LPT050-0605-02E(2-3) 100M ✔ / 1G ✔ 2 6

LPT050-0610-02E(2-3)
6
LPT050-0615-02E(2-3)

6
LPT050-1205-02E(2-3) 12

LPT050-1210-02E(2-3)
12
LPT050-1215-02E(2-3)

12
LPT060
 LPT060-0605-01E(2-3) ∅ 60 ∅ 135 100M ✔ / 1G ✔ 1 6

IP50~IP68
LPT060-0610-01E(2-3)
6
LPT060-0615-01E(2-3)

6
LPT060-1205-01E(2-3) 12

LPT060-1210-01E(2-3)
12
LPT060-1215-01E(2-3)

12
LPT060-0605-02E(2-3) 100M ✔ / 1G ✔ 2
 6

LPT060-0610-02E(2-3)
6
LPT060-0615-02E(2-3)

6
LPT060-1205-02E(2-3) 12

LPT060-1210-02E(2-3)
12
LPT060-1215-02E(2-3)

12
LPT070
 LPT070-0605-01E(2-3) ∅ 70 ∅ 135 100M ✔ / 1G ✔ 1 6

IP50~IP68
LPT070-0610-01E(2-3)
6
LPT070-0615-01E(2-3)

6
LPT070-1205-01E(2-3) 12

LPT070-1210-01E(2-3)
12
LPT070-1215-01E(2-3)

12
LPT070-0605-02E(2-3) 100M ✔ / 1G ✔ 2
 6

LPT070-0610-02E(2-3)
6
LPT070-0615-02E(2-3)

6
LPT070-1205-02E(2-3) 12

LPT070-1210-02E(2-3)
12
LPT070-1215-02E(2-3)

12
LPT080
 LPT080-0605-01E(2-3) ∅ 80 ∅ 160 100M ✔ / 1G ✔ 1 6

IP50~IP68
LPT080-0610-01E(2-3)
6
LPT080-0615-01E(2-3)

6
LPT080-1205-01E(2-3) 12

LPT080-1210-01E(2-3)
12
LPT080-1215-01E(2-3)

12
LPT080-0605-02E(2-3) 100M ✔ / 1G ✔ 2
 6

LPT080-0610-02E(2-3)
6
LPT080-0615-02E(2-3)

6
LPT080-1205-02E(2-3) 12

LPT080-1210-02E(2-3)
12
LPT080-1215-02E(2-3)

12
LPT096
 LPT096-0605-01E(2-3) ∅ 96 ∅ 185 100M ✔ / 1G ✔ 1 6

IP50~IP68
LPT096-0610-01E(2-3)
6
LPT096-0615-01E(2-3)

6
LPT096-1205-01E(2-3) 12

LPT096-1210-01E(2-3)
12
LPT096-1215-01E(2-3)

12
LPT096-0605-02E(2-3) 100M ✔ / 1G ✔ 2
 6

LPT096-0610-02E(2-3)
6
LPT096-0615-02E(2-3)

6
LPT096-1205-02E(2-3) 12

LPT096-1210-02E(2-3)
12
LPT096-1215-02E(2-3)

12

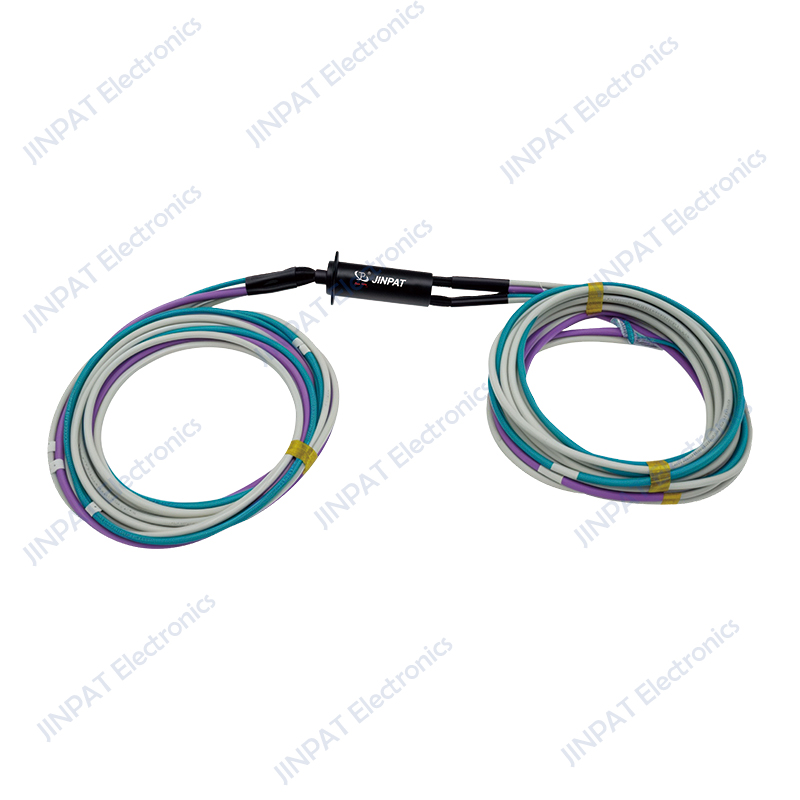

Ethernet Slip Rings(Capsule Type)

Type Model OD(mm)

Ethernet

 电流

Ethernet Support

  Ethernet Channels(set)   Current Rating(A)   Current Circuits    IP
  LPC-06   LPC-06-01E2 ∅ 22 100 Mbps✔ 1 / /  IP40~IP68
LPC-12
 LPC-12-0602-01E2    ∅ 22 100 Mbps✔ 1 2A 6
LPC-12-0205-01E2 100 Mbps✔ 1 5A 2
LPC-12-01E3 1G bps✔ 1 / /
LPC-18
 LPC-18-0602-02E2 ∅ 22 100 Mbps✔ 2 2A 6 IP40~IP68
LPC-18-0602-01E3 1G bps✔ 1 2A 6
LPC-18-0305-02E2 100 Mbps✔ 2 5A 3
LPC-18-0305-01E3 1G bps✔ 1
 5A 3
LPC-18-0210-01E2 100 Mbps✔ 1 10A 2
LPC-18-0210-01E3 1G bps✔ 1 10A 2
LPC-18-01E4 2.5G ✔ / 5G ✔ / 10G bps ✔ 1 / /
LPC-24
 LPC-24-1202-02E2 ∅ 22
 100 Mbps✔ 2 2A 12 IP40~IP68
LPC-24-1202-01E3 1G bps✔ 1 2A 12
LPC-24-0405-02E2 100 Mbps✔ 2 5A 4
LPC-24-0405-01E3 1G bps✔ 1 5A 4
LPC-24-0310-02E2 100 Mbps✔ 2 10A 3
LPC-24-0310-01E3 1G bps✔ 1 10A 3
LPC-24-0602-01E4 2.5G✔ / 5G✔ / 10Gbps ✔ 1 2A 6
LPC-30
 LPC-30-2002-02E2 ∅ 22 100 Mbps✔ 2 2A 20 IP40~IP68
LPC-30-2002-01E3 1G bps✔ 1 2A 20
LPC-30-0605-02E2 100 Mbps✔ 2 5A 6
LPC-30-0605-01E3 1G bps✔ 1 5A 6
LPC-30-0410-02E2 100 Mbps✔ 2 10A
 4
LPC-30-0410-01E3 1G bps✔ 1 10A 4
LPC-30-1202-01E4 2.5G✔ / 5G✔ / 10Gbps ✔ 1 2A 12
LPC-30-0405-01E4 2.5G✔ / 5G✔ / 10Gbps ✔ 1 5A 4
LPC-30-0210-01E4 2.5G✔ / 5G✔ / 10Gbps ✔ 1 10A 2
LPC-36
 LPC-36-2402-02E2 ∅ 22 100 Mbps✔
 2 2A 24 IP40~IP68
LPC-36-2402-01E3 1G bps✔ 1 2A 24

LPC-36-0605-03E2

 100 Mbps✔ 3 5A 6
LPC-36-0605-02E3
 1G bps✔ 2 5A 6
LPC-36-0510-02E2 100 Mbps✔ 2 10A 5
LPC-36-0510-01E3 1G bps✔ 1 10A 5
LPC-36-02E4 2.5G✔ / 5G✔ / 10Gbps ✔ 2 / /

LPC-56 		LPC-56-3002-04E2 ∅ 25 100 Mbps✔ 4 2A 30 IP40~IP68
LPC-56-3002-02E3 1G bps✔ 2 2A 30
LPC-56-1205-04E2
 100 Mbps✔ 4 5A 12
LPC-56-1205-02E3 1G bps✔ 2 5A 12
LPC-56-0610-04E2 100 Mbps✔ 4 10A 6
LPC-56-0610-02E3 1G bps✔ 2 10A 6
LPC-56-06E3 2.5G✔ / 5G✔ / 10Gbps ✔ 6 / /
LPC-76 LPC-76-3002-06E2 ∅35.5 100 Mbps✔ 6 2A 30 IP40~IP68
LPC-76-3002-04E3 1G bps✔
 4 2A 30
LPC-76-1205-06E2 100 Mbps✔ 6 5A 12
LPC-76-1205-04E3 1G bps✔ 4 5A 12
LPC-76-0610-02E2 100 Mbps✔ 2 10A 6
LPC-76-0610-01E3 1G bps✔ 1 10A 6
LPC-76-0615-04E2 100 Mbps✔ 4 15A 6
LPC-76-0615-02E3 1G bps✔ 2 15A 6
LPC-76-0620-02E2 100 Mbps✔ 2 20A 6
LPC-76-0620-01E3 1G bps✔ 1 20A 6
LPM-06 LPM-06-01E2 ∅ 12.5 100 Mbps✔ 1 / / IP40~IP68
LPM-12 LPM-12-0402-01E2 ∅ 12.5 100 Mbps✔ 1 2A 4 IP40~IP68
LPM-12-0105-01E2 100 Mbps✔ 1 5A 4
LPM-12-01E3 1G bps✔ 1 / /
LPM-18
 LPM-18-1201-01E2 ∅ 12.5 100 Mbps✔ 1 1A 12 IP40~IP68
LPM-18-0601-02E2 100 Mbps✔ 2 1A 6
LPM-18-0601-01E3 1G bps✔ 1 1A 6
LPM-18-0205-02E2 100 Mbps✔ 2 5A 2
LPM-18-0205-01E3 1G bps✔ 1 5A 2
LPM-24 LPM-24-0601-03E2 ∅ 15.5 100 Mbps✔ 3 1A 6 IP40~IP68
LPM-24-0601-02E3 1G bps✔ 2 1A 6
LPM-24-1201-02E2 100 Mbps✔ 2 1A 12
LPM-24-1201-01E3 1G bps✔ 1 1A 12
LPM-24-0305-01E2 100 Mbps✔ 1 5A 3
LPM-24-0305-01E3 1G bps✔ 1 5A 3
LPM-30
 LPM-30-0610-04E2 ∅16 100 Mbps✔ 4 1A 6 IP40~IP68
LPM-30-0610-04E3 1G bps✔ 4 1A 6
LPM-30-1201-03E2 100 Mbps✔ 3 1A 12
LPM-30-1201-02E3
 1G bps✔ 2 1A 12
LPM-30-0405-02E2 100 Mbps✔ 2 5A 4
LPM-30-0405-01E3 1G bps✔ 1 5A 4
