Introduction of JINPAT pie-shaped slip ring

A circular slip ring, also known as a flat slip ring, is a special type of slip ring. The friction pair consists of a contact brush and copper rings. The copper rings are placed concentrically rather than stacked together. This structure contributes to the ultra-thinness of the flat slip ring. Therefore, the pancake slip ring is particularly suitable for electronic devices with limited space in the axial direction. The pancake slip ring also plays an important role in the military industry. With our excellent design and production techniques, JINPAT pancake slip ring is an excellent choice for military hardware.

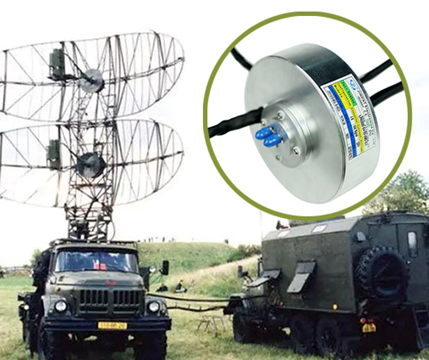

For example, JINPAT flat slip rings are widely installed in radar and satellite communications on the move for vehicular system and airborne system. Being very thin and easy to use, JINPAT flat sliding ring is very competitive in application with limited axial space. Take a look at the following comparison. JINPAT LPT000-0510-E2 is a through-hole slip ring designed for radar system. It has the simplest structure and fewer channels. It only integrates 5 10A channels but its length is up to 72.5mm. Compared with this model, JINPAT LPK000-0410-08S-E2 flat slip ring occupies only 36mm in height. The height is reduced by half in the pancake slip ring. Most JINPAT pie ring models are about 36mm high.

  حلقة فطيرة جينبات LPK000-0410-08S-E2

Thanks to its integrated structure, JINPAT pancake slip rings have a high degree of protection. LPK000-0410-08S-E2 is with IP65 while LPK000-0230-10S-E2 is with IP64. With a relatively high degree of protection, JINPAT slip rings can handle tough working environments. This feature also makes it very suitable for military applications.

JINPAT Electronics has much experience in producing different types of slip rings. Contact us for customized solutions and get a quote. JINPAT Electronics, the slip ring expert.
