JINPAT Through Sliding Cavity Rings The Best High Performance Solution for Robots

Through-hole slip rings are also known as hollow shaft slip rings. Due to their special internal and external structure, their stress-bearing capacity is much higher than that of capsule slip rings. In addition, hollow shaft slip rings have a longer service life. The cavity can be mounted on the drive shaft or can be a passage for some special pipes and channels. This central through-hole design makes the through-hole slip ring an ideal type for further integration. JINPAT hollow shaft slip rings can be combined with pneumatic-hydraulic rotary unions, high-speed slip ring, etc.

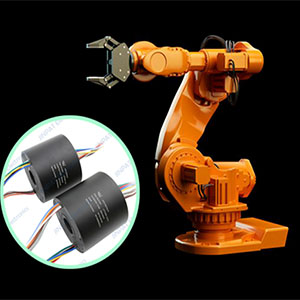

Among the application fields of JINPAT through-hole slip rings, the robot industry is the most important. Since some fields have their own unique requirements for the slip rings and rotary joints they are applied to, the slip rings for the robot industry are undoubtedly very special. First, let's take a look at some standard slip ring models for PLC robots. In RoboMaster, a Chinese robot competition for college students, construction robots and guard robots follow the JINPAT standard with slip rings to enable joint rotation and transmission of power and signals. The frequently applied hollow shaft models have 12 channels of 10A or 18 channels of 5A. According to the requirements of different teams, the hole diameter is different.

JINPAT hollow shaft slip rings are very popular among different robot teams. This is due to the numerous upgrades and improvements of the slip ring products. With continuous dedication to improving the performance of the slip ring, JINPAT through cavity slip rings are very stable in performance. Our hollow shaft slip rings have many advantages over other similar products such as electronic performance, mechanical performance and service life. These three aspects are the main factors when considering the slip ring for robots. To allow special function for construction robots, some customizations are made to the hollow shaft slip ring. For example, some power channels are replaced by RS channels and CAN channels.

Apart from encrypted educational robots, robots in industrial manufacturing such as welding robots and lifting robots are also preferred by slip rings. As pure slip rings by cavity are not enough to answer the complex needs in industrial production, customized solutions are needed. As for the integrated customization by slip rings, JINPAT Electronics has already provided many practical and effective solutions for our customers. For more information and advice, please contact the technical team of JINPAT.
