JINPAT Electronics Professional Slip Ring Manufacturer for 3D Scanning Robots

Once a new technology passes industrial testing, it will not be widely applied. Machine vision is a good example. Machine vision first appears in the automatic manufacturing industry to check faults in various products. As an advanced testing technology, it can work independently or be combined with industrial robots to complete a process such as 3D scanning. In most circumstances, machine vision devices with 3D scanning need a high-definition video signal slide ring or a built-in slide ring with high-definition video signal capability.

Recently, Chinese researchers have combined machine vision with an industrial robot to scan 3D drawings of Qin Shihuang's clay army. Although the applied devices do not include slide rings, they draw a comprehensive view of the combination of machine vision and robot. JINPAT Electronics, a household name in China's slip ring industry, has provided hundreds of slip rings and rotary joint solutions for industrial robots and machine vision.

Therefore, for hybrid technology, JINPAT Electronics also has solutions to suit the demand.

Industrial robots, since they have a very long operating time to meet production requirements, have high standards in slip rings reliability. At the same time, machine vision enables high-definition and ultra-high-definition graphics and videos, so slip rings must gain the ability to transmit visual data at a high rate. JINPAT has slip rings models that meet both requirements. JINPAT customized slip rings answer those of industrial robots while JINPAT LPCC high-definition video slip rings address machine vision. JINPAT LPCC slip rings are capable of allowing 12G-SDI high-definition data transmission.

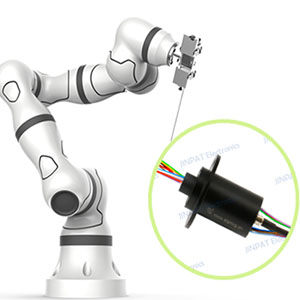

JINPAT slip rings designed for industrial robots have ultra-small models with a diameter of at least 6.5mm and larger models that support power transmission in hundreds of watts. As for 3D scanning robots, most of them are small and medium-sized slip rings models. This means that it is through cavity slip rings and capsule slip rings with small cavity diameter or diameter.

The LPC1C slip ring is a very mature JINPAT standard slip ring branch and can be directly applied to 3D scanner robots. Apart from small and medium-sized products, JINPAT Electronics also excels in developing very small SDI HD video slip rings with diameter less than 10mm. It is perfectly suitable for 3D scanner robot arms with limited installation space.
