JINPAT sliding rings for legged robots

Legged robots mimic the leg movements of a human or animal and can therefore walk on rough roads and even hazardous environments in a stable manner. Legged robots have advantages over robots due to their excellent biomechanical design. To allow flexible joint movement while transmitting different sensor signals, electrical slip rings are required.

With the help of electric slip rings and rotary joints, legged robots can be used in rescue operations, mine sweeping and other environments to replace human labor.

JINPAT Electronics has provided many slip ring solutions for different robot applications. To answer the requirements of legged robots, JINPAT's R&D team spares no effort in providing the best solutions. To suit the compact and ultra-light design of the legged robot, JINPAT Electronics recommends capsule slip ring and mini slip ring types. JINPAT LPS separate slip ring, coverless and space-saving, is also a good choice for such application.

To be precise, most legged robots have a strong demand for transmitting optical signals from the optical receiver to the processing sensor. Therefore, an integrated optical slip ring is also preferred. With the mixed transmission of power, signal and visual signal, JINPAT slip rings allow the legged robot to have smooth and elegant movement while passing key signals.

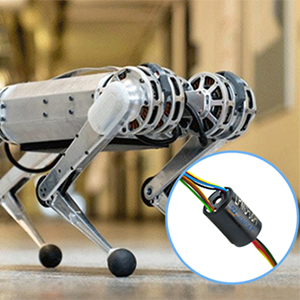

And take a look at one of our practical case is LPMS-06B-06S. The LPMS-06B-06S is an extremely small slide ring measuring only 8.5mm in diameter and 14.2mm long. There are 4 channels for electrical power and 2 channels for analog signal. This very small slip ring fits legged robots with limited mounting space and harsh weight limits. Another mature solution is the LPM-30 branch. The slip rings within this encoder integrate up to 30 channels and due to the relatively large structure, the mini LPM slip ring is able to integrate different types of slip rings such as HD video signals, CAN, USB and GND, etc.

JINPAT Electronics is an expert in R&D, production and sales of slip rings. Go to JINPAT for more innovative solutions!
