Slip ring of JINPAT geophysical exploration robot for example

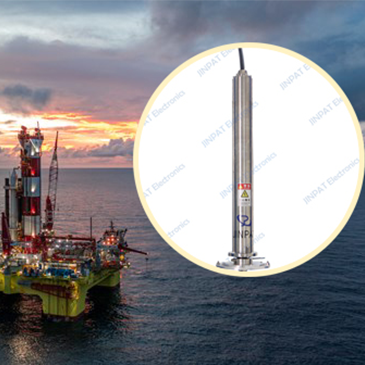

Take the slip ring of JINPAT geophysical exploration robot as an example, it is coded as LPA000-0630-01PE-0620-30S and is specially designed for oil exploration platform.

This high voltage photoelectric slip ring integrates 6 channels of 30A power and 6 channels of 20A power.

The voltage of this unit is up to 3700VAC. Speaking of the signal unit, there are 26 signal channels,4 channels of analog video signal and a 4-channel single-mode optical fiber rotary joint.

To ensure reliability and stability, the slip ring has an IP66 protection rating.

Exposed cables need extra protection. Moreover, this custom slip ring is unique in that silver graphite, copper graphite and gold plated wire brush are adopted at the same time to meet the requirements of different power and signal channels. These features also contribute to high stability when transmitting power and signals in long operating time.
