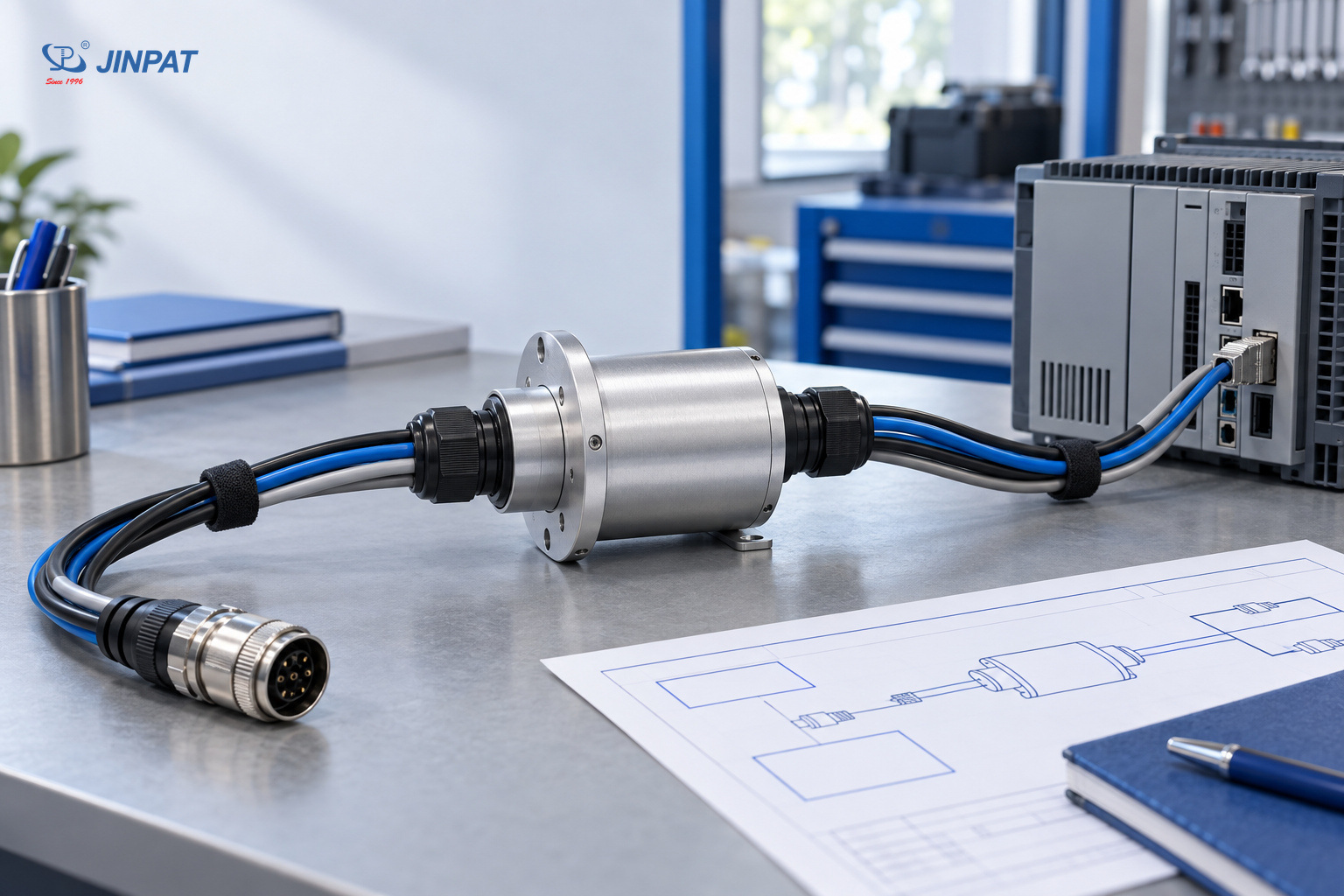

Slip Ring Signal Requirements: What OEM Engineers Should Specify

Slip ring signal requirements should identify each communication link, its electrical interface and protocol, the conductors it needs, and the performance the machine must maintain during rotation. Include the cable and connector arrangement, shielding connections, and nearby power circuits. For OEM controls engineers, the objective is a defined transmission path that a supplier can evaluate, rather than a request that simply says "data."

A catalog label such as Ethernet or CAN bus is a starting point. A useful specification explains what connects across the rotating boundary and what successful operation means for that particular machine.

Identify the interface before naming the protocol

Specify the electrical interface and the communication protocol separately wherever that distinction applies. A connector shape or a broad signal label does not identify the complete link. Name the transmitting and receiving devices, provide their interface documentation, and state the required protocol or profile so the supplier can assess the actual rotating connection.

For an RS-485 slip ring request, "RS-485" identifies an electrical interface, not the complete message format used by the equipment. Texas Instruments makes this distinction in its RS-485 design guide. Include the higher-level protocol, operating data rate, duplex arrangement, and existing network layout.

Similarly, an Ethernet slip ring request should identify the required Ethernet physical interface and link speed, together with the industrial protocol when applicable. Do not assume a connector that fits proves compatibility.

For an encoder, attach the encoder and controller interface pages. "Encoder signal" alone does not establish the output circuit or the number of required conductors.

Count links, conductors, and connectors separately

Count independent communication links before translating them into conductors, slip ring circuits, and connector pins. These counts describe different parts of the design and should not be used interchangeably. Give every link an identifier, map its connections across the rotating boundary, and ask the supplier to confirm how that mapping becomes a proposed slip ring configuration.

An Ethernet link is not one interchangeable signal wire. A differential signal uses an associated conductor pair, while some interfaces also require reference or auxiliary connections. Shields and connector shells introduce further connection decisions. Let the actual interface documentation establish the mapping rather than assigning an arbitrary number of rings to each named protocol.

Use a simple mapping sequence:

1. Name the fixed-side device and rotating-side device.

2. Identify the independent link and its interface.

3. List the required conductors or pairs, references, and auxiliary connections.

4. Map those connections to the specified connector pinouts.

5. Mark which connections are active together and which are reserved for future use.

A spare conductor does not automatically constitute a spare communication channel. If future expansion requires another link, specify that interface and the intended cable arrangement rather than requesting an unspecified spare circuit.

Separate data rate from application performance

Specify both the communication rate and the application outcome that depends on the link. A nominal data rate does not by itself establish end-to-end response, synchronization, or acceptable error behavior. State the relevant operating conditions and identify which performance limits belong to the complete machine, so the rotating interface can be reviewed within the system.

Describe the outcome the machine needs

A camera link may be governed by image-transfer demand and acceptable frame loss. A control link may instead depend on update timing and the machine's response to communication interruption. An encoder connection may require attention to pulse timing or the receiver's serial-interface requirements. These are different engineering questions even when the equipment is described broadly as sending data.

Where relevant, provide the required throughput, update interval, permitted timing variation, synchronization needs, and response to a lost link. Use limits from the machine design or endpoint documentation. If a limit has not been established, identify it as an open design input rather than inserting a generic value.

Define the boundary of the proposed connection

Show the cable sections and connectors on both sides of the slip ring, not only the rotary component. Ask which parts of that assembled path the supplier's proposed capability covers. A statement about one component should not be interpreted as a verified result for a different cable assembly.

Include rotation conditions and simultaneous signal activity as review inputs. Detailed test procedures belong in the acceptance plan; at this stage, make the required communication outcome and the operating conditions clear.

Define shielding and coexistence with power

Describe shielding as a connection arrangement across the whole signal path, including cables, connector shells, and the rotating interface. Also identify nearby power circuits and switching loads that may affect sensitive channels. The useful requirement is how the machine's intended signal and grounding arrangement will be maintained, rather than an unsupported request for "no interference."

Shielding, signal reference, and protective grounding serve different purposes. Identify each connection explicitly and have the responsible system engineer define the grounding arrangement. Do not use one generic "ground" label for connections whose functions differ.

For differential links, preserve the intended pair assignments through cable and connector mapping. The TI guide discusses the importance of the transmission-line arrangement, conductor relationships, and termination for RS-485. A slip ring connection should be reviewed as part of that network rather than treated as permission to add arbitrary terminations.

Tell the supplier what operates alongside the signals

Identify power groups that share the assembly, especially switching or transient loads, and show which sensitive channels operate at the same time. This supplies context for evaluating separation and crosstalk without turning the signal specification into a complete electrical power schedule.

Common mistakes include stating "shielded cable" without defining shield continuity, assuming a metal housing completes every shield connection, and assessing data transmission without the power activity present in normal operation. Ask for the proposed connection arrangement and its assumptions; a shielding label alone is not a system-level performance guarantee.

Use JINPAT catalog information at the right level

Use JINPAT signal and Ethernet product material to identify relevant configuration directions, then check the proposed assembly against the machine's documented requirements. Catalog descriptions establish subjects for an engineering discussion; they do not establish that every model supports every listed protocol, channel combination, or performance requirement under all operating conditions.

JINPAT's industrial fieldbus selection material lists CAN/CANopen, RS-485, and EtherCAT among its supported interface or protocol directions. It also describes modular combinations of power, signal, encoder, and fieldbus channels. This supports requesting a configuration review for those needs, while leaving the exact interface and operating requirements to be confirmed.

JINPAT's through-bore and capsule Ethernet selection materials describe combined power and Ethernet transmission, with customization options including Ethernet quantity, other signal types, and connector types. Those options should be discussed for the proposed configuration rather than assumed to be standard on every entry.

A CAN bus slip ring candidate, for example, still needs review against the specified network arrangement and operating requirements. Do not transfer a capability statement from one configuration to another or treat a protocol mention as certification.

Turn a vague request into a usable signal brief

A usable signal brief should let the supplier trace each link from one endpoint to the other and see the requirements that remain unresolved. Organize the request around interfaces, connection mapping, performance, and coexistence. This makes the signal portion of the inquiry actionable without duplicating the full mechanical, environmental, commercial, and acceptance package.

Consider a hypothetical OEM rotary inspection station with a camera link, an encoder connection, and power in the same assembly. This is an illustrative engineering example, not a JINPAT customer case.

The initial request, "Ethernet plus encoder and power," leaves several decisions open. The revised brief would identify:

• The camera interface, required link speed, and actual data-transfer demand.

• The encoder's output interface and the controller input documentation.

• Separate link identifiers, conductor or pair assignments, and connector pinouts.

• Cable sections, shield connections, and signal references on both sides.

• Power activity that occurs while imaging and position feedback are active.

• Required communication behavior, rotation conditions, and unresolved design inputs.

If the encoder interface is still unknown, obtain that information before accepting a proposed signal configuration. A supplier should not have to infer the interface from the sensor's function.

Use the complete slip ring specification checklist to place this signal brief within the overall RFQ. Send JINPAT the defined links, endpoint documentation, and operating constraints for discussion of a suitable configuration. The next step is confirmation against those requirements, not a blanket assumption that a product labeled "data slip ring" will meet them.
