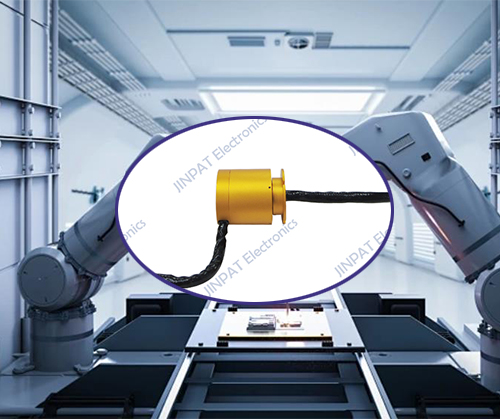

Dual-Layer Slip Ring for Robotic Arms: Compact Integration with Long Life

In high-precision industries like robotics, space efficiency and signal reliability are critical. JINPAT has developed an innovative dual-layer slip ring, where a small slip ring is integrated within a larger unit—maximizing performance in a compact footprint.

 Key Features:

• Dual-Layer Architecture
  A large slip ring houses a smaller inner ring, enabling efficient use of space while supporting multiple signal and power channels.

• Ultra-Long Lifespan
  Engineered for over 10 million revolutions, this slip ring ensures long-term reliability with minimal maintenance.

• Ideal for Robotic Arms
  This compact and modular design is perfectly suited for robotic joints, where both space and rotational endurance are vital.

• High Integration Capability
  Customizable to support various signal types including sensors, Ethernet, and control systems—all in one unit.

 Application: Robotic Arm Rotary Joints

The dual-layer slip ring is widely used in robotic automation, smart manufacturing, and high-frequency rotation systems, providing seamless signal and power transfer in rotating axes.

JINPAT continues to lead with precision-engineered slip ring solutions—contact us to customize yours today.
