Reliable Signal & Power Transmission in One Compact Slip Ring Solution

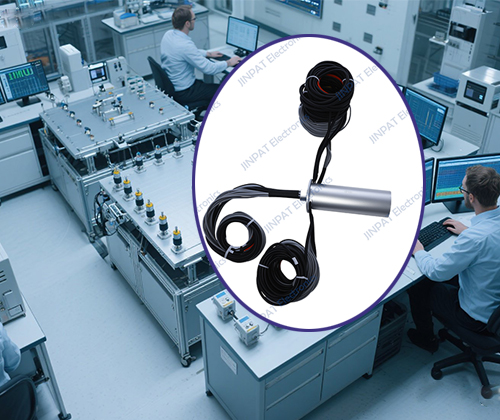

In precision motion platforms such as IMU calibration systems, the demand for stable signal and power transmission within a rotating structure is critical. To meet these complex requirements, JINPAT introduces a multi-channel hollow shaft slip ring engineered for mixed-signal environments and high-performance electromechanical systems.

This specific model combines robust power capabilities with advanced signal integration, featuring:

• 4 circuits of 30A,

• 4 circuits of 20A,

• 3 circuits of 2A,

• 4 channels for sensor signal transmission,

• 27 channels of CAN bus communication,

• 10 channels for encoder signal transmission.

Thanks to its through-bore (hollow shaft) design, the slip ring allows for easy shaft mounting or the passage of fluid/pneumatic lines through its center. This makes it particularly suitable for integrated platforms where mechanical flexibility and compact assembly are essential.

Engineered for Demanding Applications

JINPAT’s hollow shaft slip rings are widely used in advanced automation and testing systems. This model, with its high circuit count and hybrid capability, is specifically optimized for IMU calibration platforms, where real-time feedback, data accuracy, and consistent electrical performance are essential.

The integration of CAN bus and encoder signal channels ensures precise control and feedback transmission for motion sensors and actuators. The sensor signal interfaces are engineered with shielding and anti-interference design, enhancing reliability even under continuous rotation.

Why Choose JINPAT?

• Customizable channel configuration to match unique project requirements

• Long lifespan and low contact resistance, ensuring stable performance over time

• High signal integrity, with low noise and minimal crosstalk

• Compact and robust design, ready for harsh or space-constrained environments

JINPAT remains committed to delivering innovative slip ring solutions for industries ranging from aerospace to robotics. With this model, we bridge the gap between power delivery and sensitive signal integrity—offering you a solution that simplifies your system while enhancing its performance.

Explore our full range of hollow shaft slip rings or contact us for custom solutions tailored to your application needs.
