JINPAT Slip Rings for Automatic Cable Reels

Automatic cable reels and automatic wire winders are electrical devices used to hold various types of electrical wires. Cable reel or cable drum helps to store cables and wires. It makes it possible to lengthen and block cables according to practical needs. To enable the transmission of power and signals, a slip ring is needed in this device.

JINPAT Electronics has designed a variety of slip rings that serve cable reels and wire winders. Depending on the size of the cable reels, JINPAT recommends different slip ring solutions.

JINPAT rope reel slip rings are a small type of slip rings that work in relatively small cable reels. Let's take a look at the slip ring model LPMS-05D. It is an extremely small slip ring with an outer diameter of only 5.5mm. This cable reel slip ring maintains the smallest record size in this application area. The extremely low torque and low friction ensure smooth and durable operation. This ultra-small slip ring from JINPAT fits for visible fishing rods and flexible switchboard.

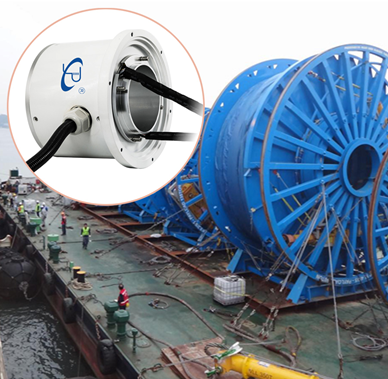

As for the offshore platform cable reel and ship cable reel, JINPAT also has customized slip rings such as LPTS000-0440-14S and LPA000-0250-FO04. The former slip ring model is based on through-cavity slip ring while the other is large current type. These two slip rings feature high energy capacity and high operating voltage. Compared with small size cable reel slip rings, these two slip rings have higher protection degree and are able to handle harsh environment.

Apart from the above mentioned slip ring models, there are many other slip ring solutions not only for cable reels but also for other types of applications. Please feel free to contact JINPAT for more information about slip rings and swivel unions.
