Discover the epitome of rotational connectivity with the JINPAT LPR-8 Pin Connection Slip Rings. With eight paths for comprehensive connectivity, these slip rings set the standard for performance and versatility. Engineered to replace traditional wires with pins, they provide a compact and efficient solution for transmitting signals and power across rotating interfaces. Experience seamless integration and unmatched reliability with JINPAT LPR-8.
MAIN APPLICATIONS:Wind generators、Rotating platform、Cable reel and hot roller、Production line equipment
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
8 CKT |
Working Speed |
0~300rpm |
Detail |
6Circuits×20A+2Circuits×5A |
Contact Material |
Gold to Gold |
|
Rating Voltage |
0~240V AC/DC |
Housing Material |
Engineering plastics |
|
Dielectric Strength |
≥500VAC@50Hz |
Lead Wire Length |
/ |
|
Insulation Resistance |
≥1000MΩ@500VDC |
Eletrical Noise |
≤35mΩ |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Conductor Specification |
Terminal wiring |
|
IP |
IP40 |
Note: "P" stands for power, "S" stands for signal. |
||

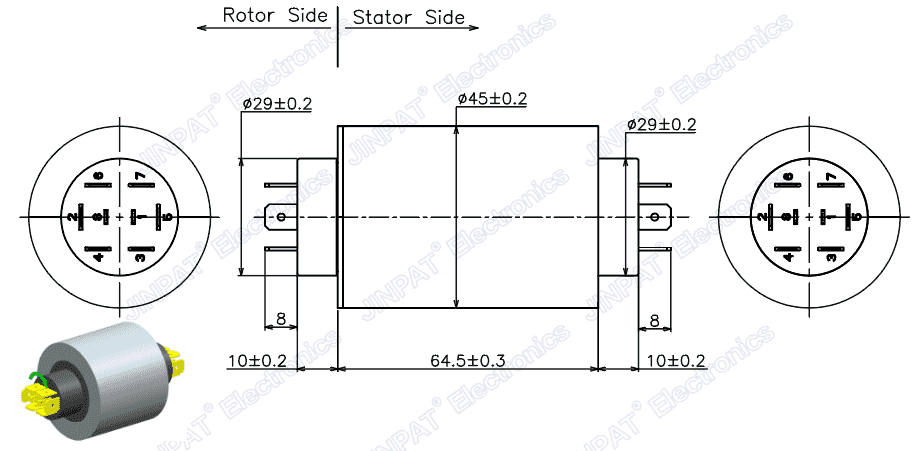

LPR-8 Outline Drawing
